열해석
- 열해석 Simulation①

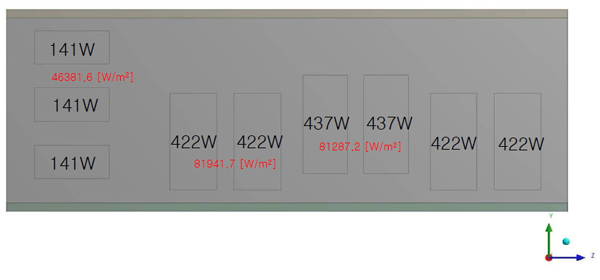

- Heat Source Condition
-
- 풍량: 3m/s,4m/s
- 주변온도: 40℃
- 열해석 Simulation②

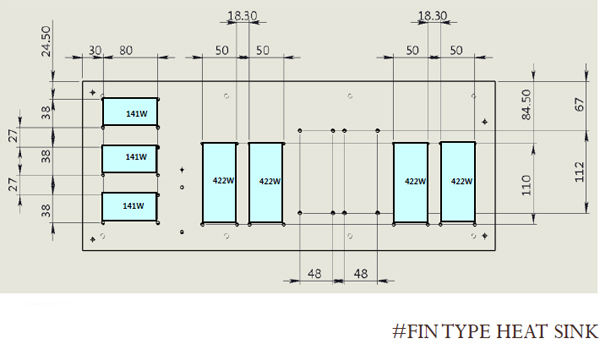

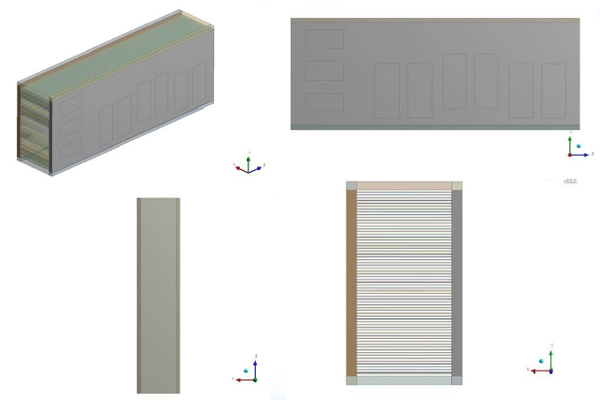

- GEOMETRY
- 열해석 Simulation③

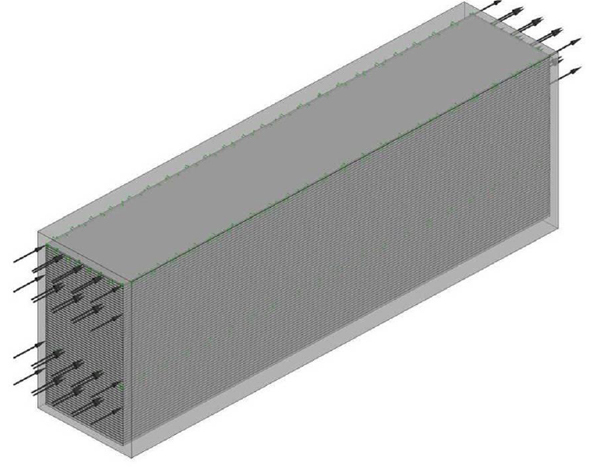

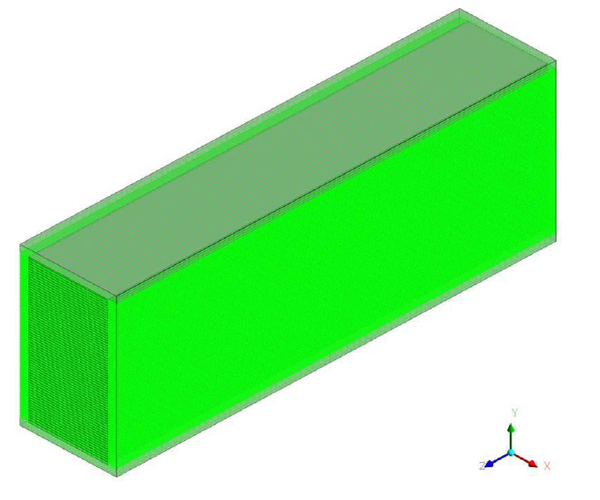

- Mesh
-
- Number df Nodes : 1641040
- 열해석 Simulation④
- Boundary Condition 1
-
- Turbulence model : k-Epsilon
- OUTLET : 0Pa
- Material : Air, 40°C
- Reference pressure : 1atm
-
- Case1 : 3m/s
- Case2 : 4m/s
- 열해석 Simulation⑤
- Boundary Condition 2
- 열해석 Simulation⑥

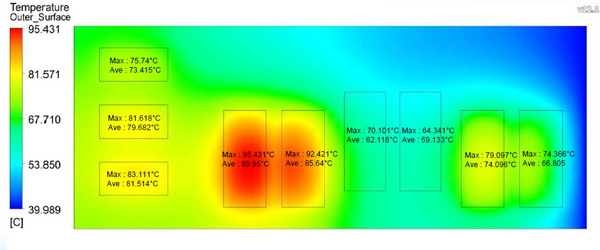

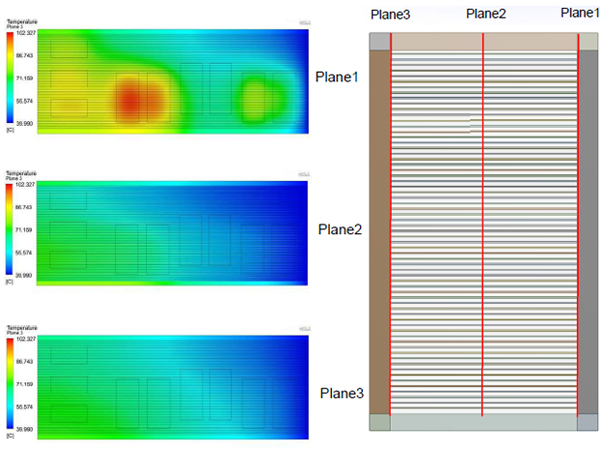

- Heat sink Plane Temperature Contour (3m/s)
- 열해석 Simulation⑦

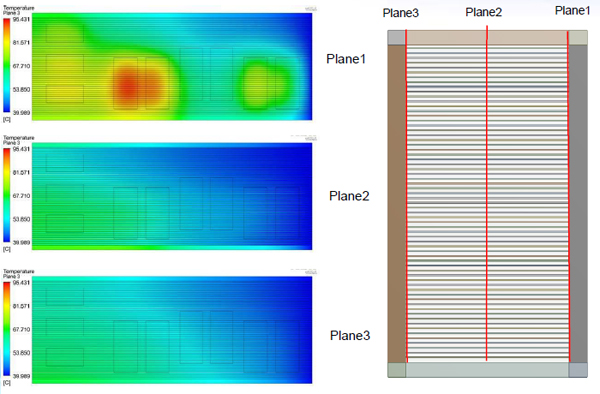

- YZ Plane Temperature Contour (3m/s)
- 열해석 Simulation⑧

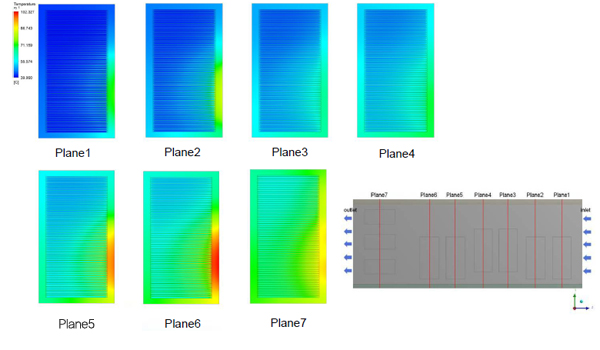

- XY Plane Temperature Contour (3m/s)
- 열해석 Simulation⑨

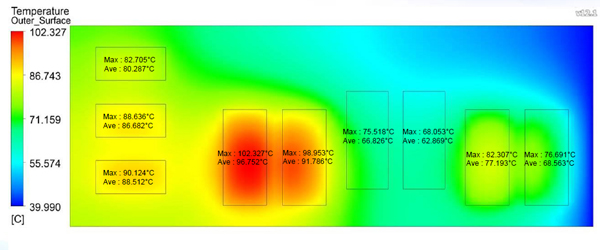

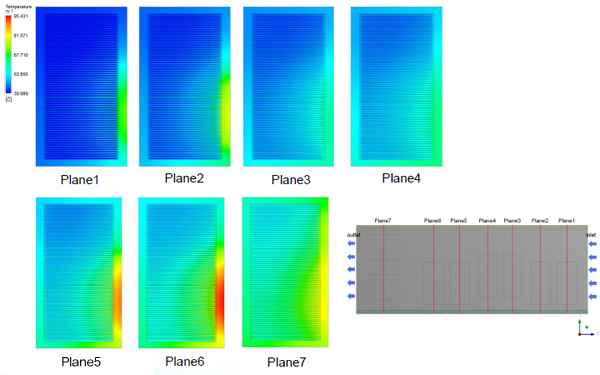

- Heat sink Plane Temperature Contour(4m/s)
- 열해석 Simulation⑩
- YZ Plane Temperature Contour (4m/s)
- 열해석 Simulation⑪
- XY Plane Temperature Contour (4m/s)
- 열해석 Simulation⑫

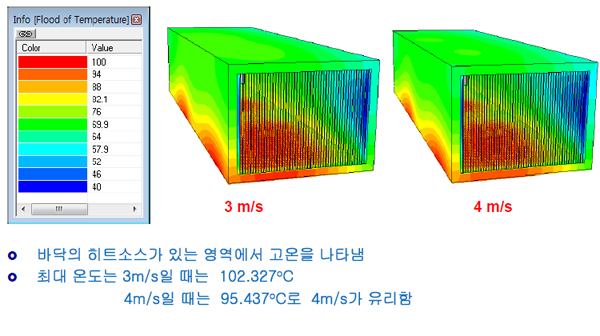

- 해석결과
